Salesforce Marketing Cloud (SFMC) is where many teams build and send email. The Optimove integration lets you plan and execute email campaigns in Salesforce Marketing Cloud, using Optimove's customer segmentation.

Optimove connects to Salesforce Marketing Cloud Email for three things:

To send your campaign audience and any customer data you choose, right when the campaign runs.
To trigger Salesforce Marketing Cloud to send the selected email template to that audience, for scheduled and real-time campaigns alike.
To pull campaign metrics back into Optimove, for individual customers and for the whole campaign.

This guide will walk you through how to connect your Salesforce Marketing Cloud account, personalize your templates, run campaigns and fix the most common setup problems, from gathering your account details to viewing results in Optimove.

Please note: This integration covers the Salesforce Marketing Cloud Email channel only. It supports scheduled campaigns, where the audience is exported and the campaign is sent in batches, and real-time campaigns, where each customer is sent and triggered individually as they meet the campaign's trigger.

How to Set Up the Salesforce Marketing Cloud Email Integration

Gather your Salesforce Marketing Cloud details

Collect this information from your Salesforce Marketing Cloud account. You will submit it with your integration request in Step 3. You will find the External Keys in Email Studio, under Admin → Send Management.

Please note: Copy each External Key exactly as it appears in Salesforce Marketing Cloud, including spaces and capital letters. The External Key is not always the same as the name.

What you need:

Business Unit(s): The Business Unit(s) you want to connect, if you have more than one.
Send Classification External Key: Under Send Management → Send Classifications, open your send classification and copy its External Key.
Delivery Profile External Key: Under Send Management → Delivery Profiles, find the Delivery Profile used by that send classification and copy its External Key.
Sender Profile External Key: Under Send Management → Sender Profiles, find the Sender Profile used by that send classification and copy its External Key.
Data Extension folder ID: The folder where Optimove should create the Data Extensions it uses for your campaign audiences.
Content Builder folder ID(s): The folder(s) holding the email templates you want to sync to Optimove.
API credentials: The clientId, clientSecret, accountId and subDomain from the Optimove package you install in Step 2.
Email attribute name: The Optimove attribute that holds the customer's email address. Optimove sends this value with every campaign. If the email address is stored on the Salesforce Marketing Cloud side, this attribute can hold a hashed email instead of the plain address.
If you whitelist specific IPs to access your Salesforce environment, reach out to your Customer Success Manager (CSM) for Optimove's IP list.

Important: Send us the Sender Profile and Delivery Profile that your Send Classification actually uses. You can see them when you open the send classification, under Sender Information. If you send the keys of a different profile (for example, your default profile), emails go out with the wrong From name, or the send fails.

Instructions: Find your keys and folder IDs

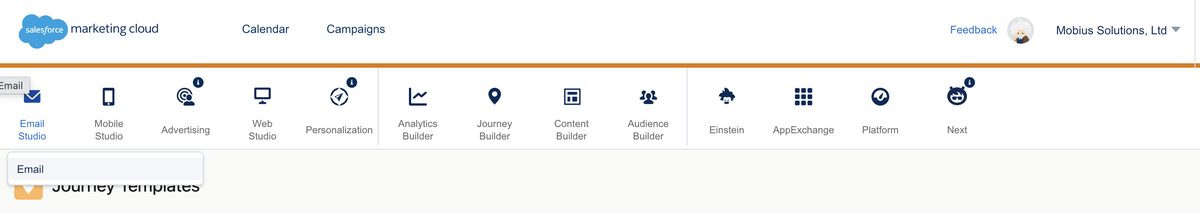

In Salesforce Marketing Cloud, open Email Studio.

Go to the Admin tab.

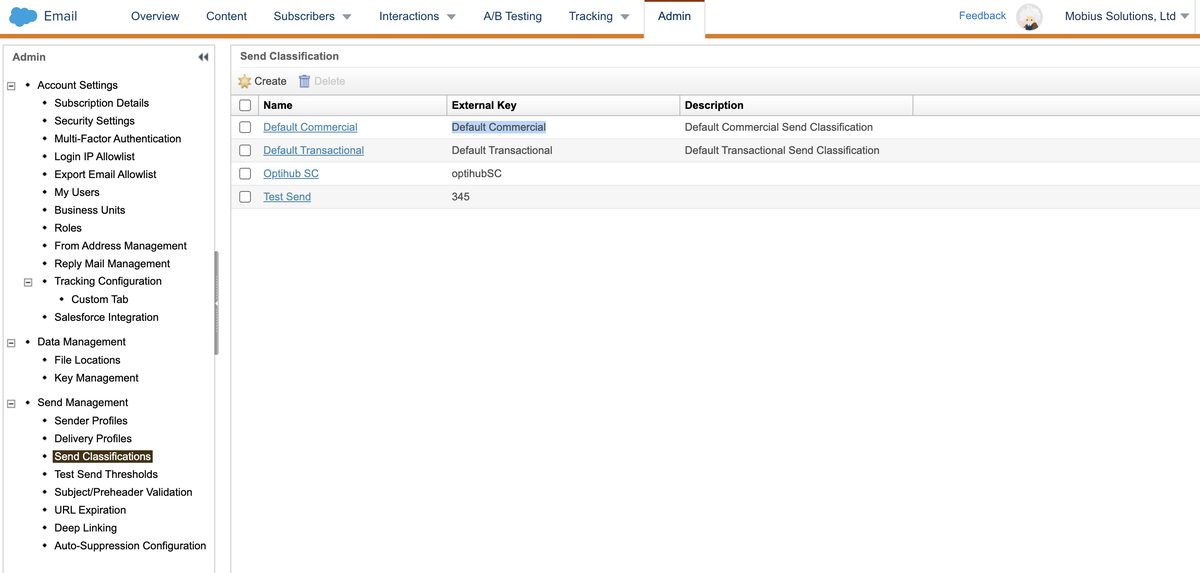

Go to Send Management → Send Classifications. Open your send classification and copy its External Key (key 1 of 3).

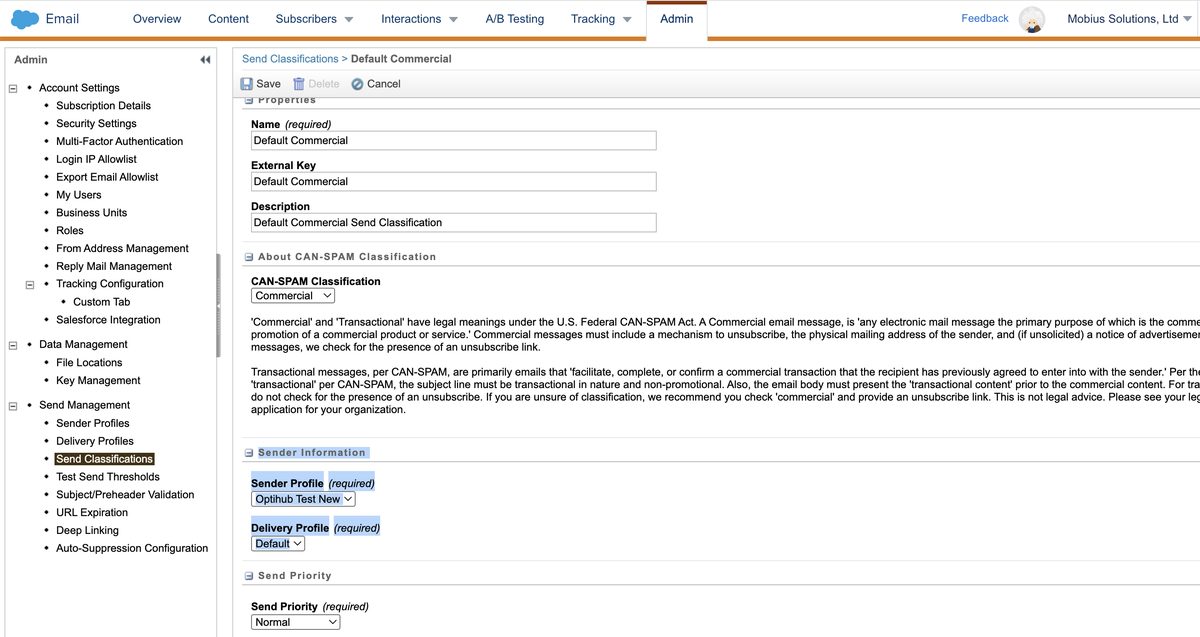

Open the send classification. Under Sender Information, note which Sender Profile and Delivery Profile it uses.

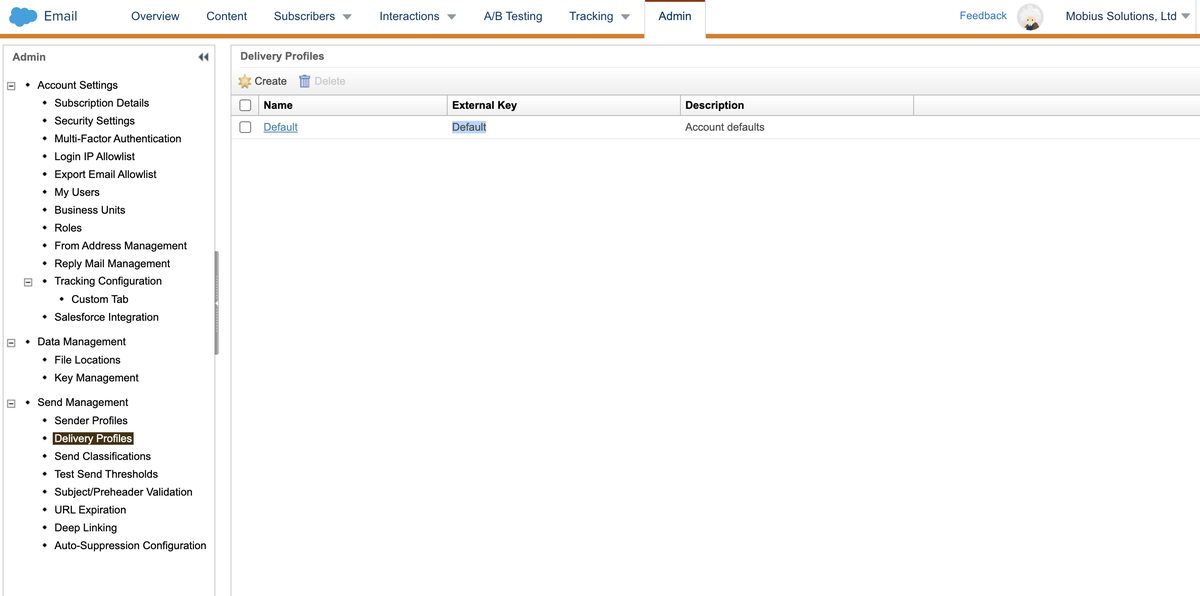

Go to Send Management → Delivery Profiles. Find that Delivery Profile and copy its External Key (key 2 of 3).

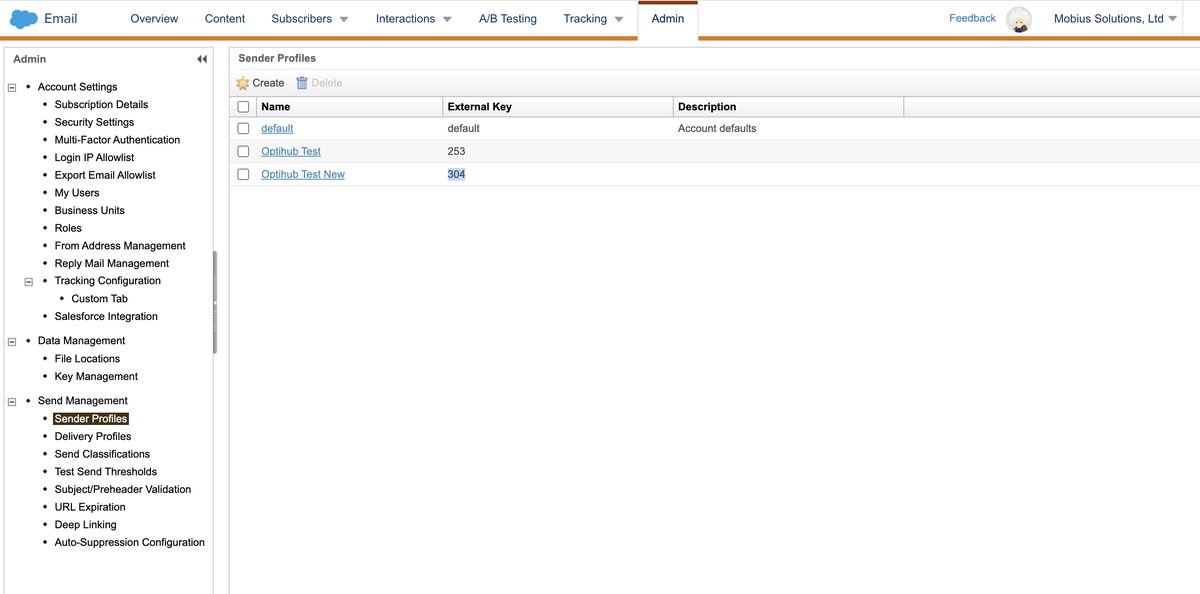

Go to Send Management → Sender Profiles. Find that Sender Profile and copy its External Key (key 3 of 3).

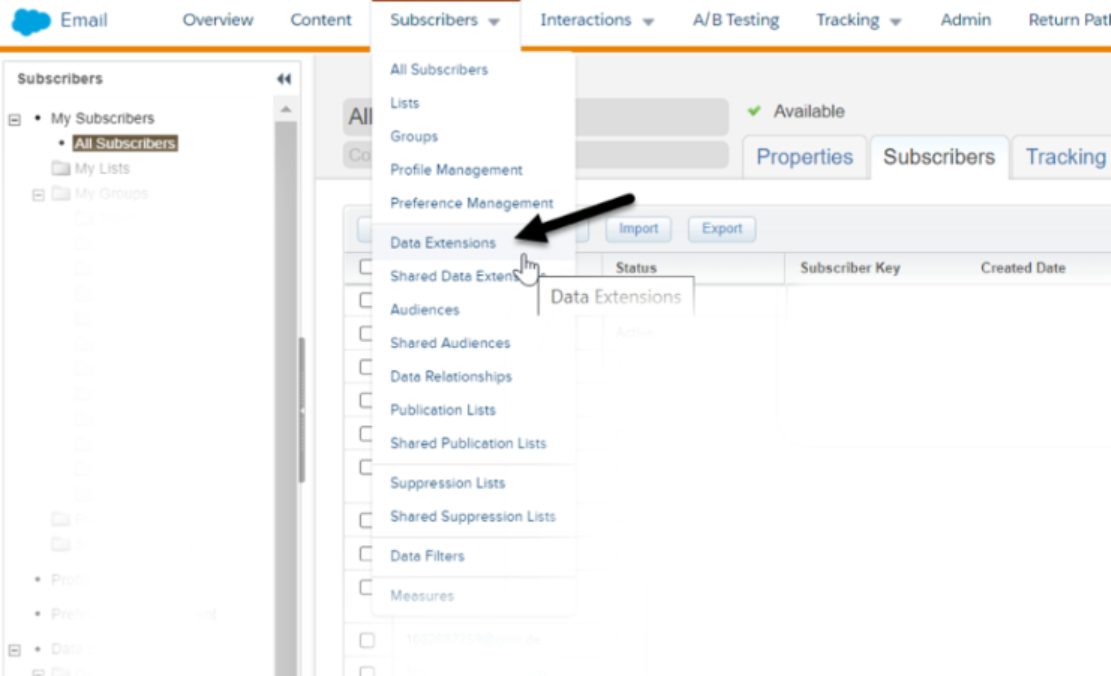

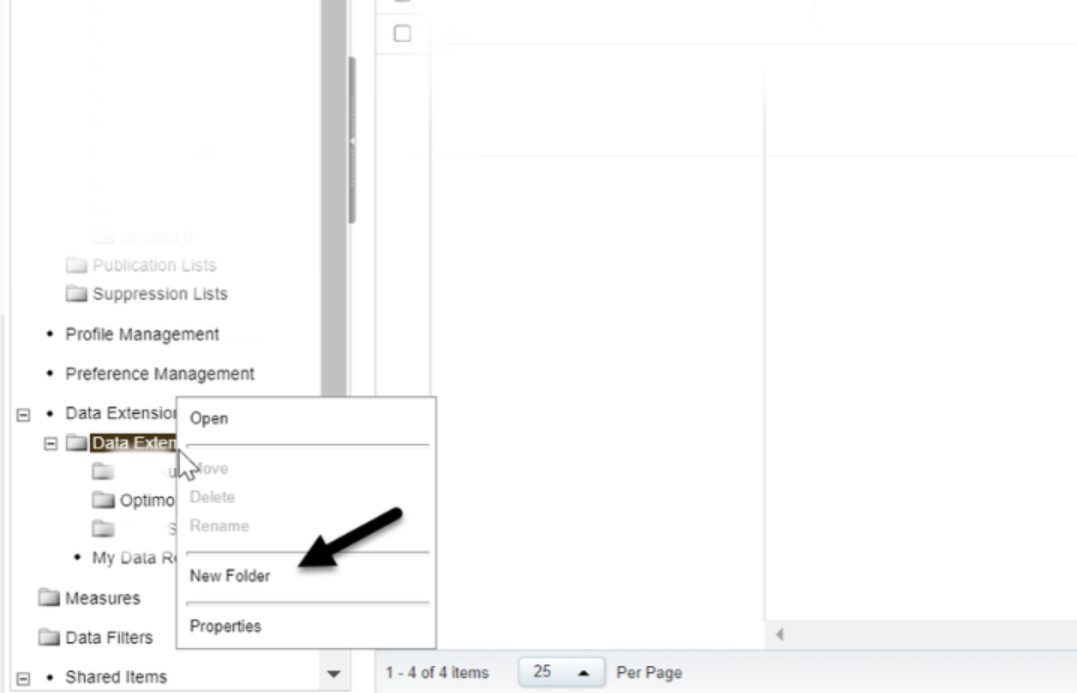

Choose or create the Data Extension folder. Go to Subscribers → Data Extensions, then right-click the folder and select New Folder.

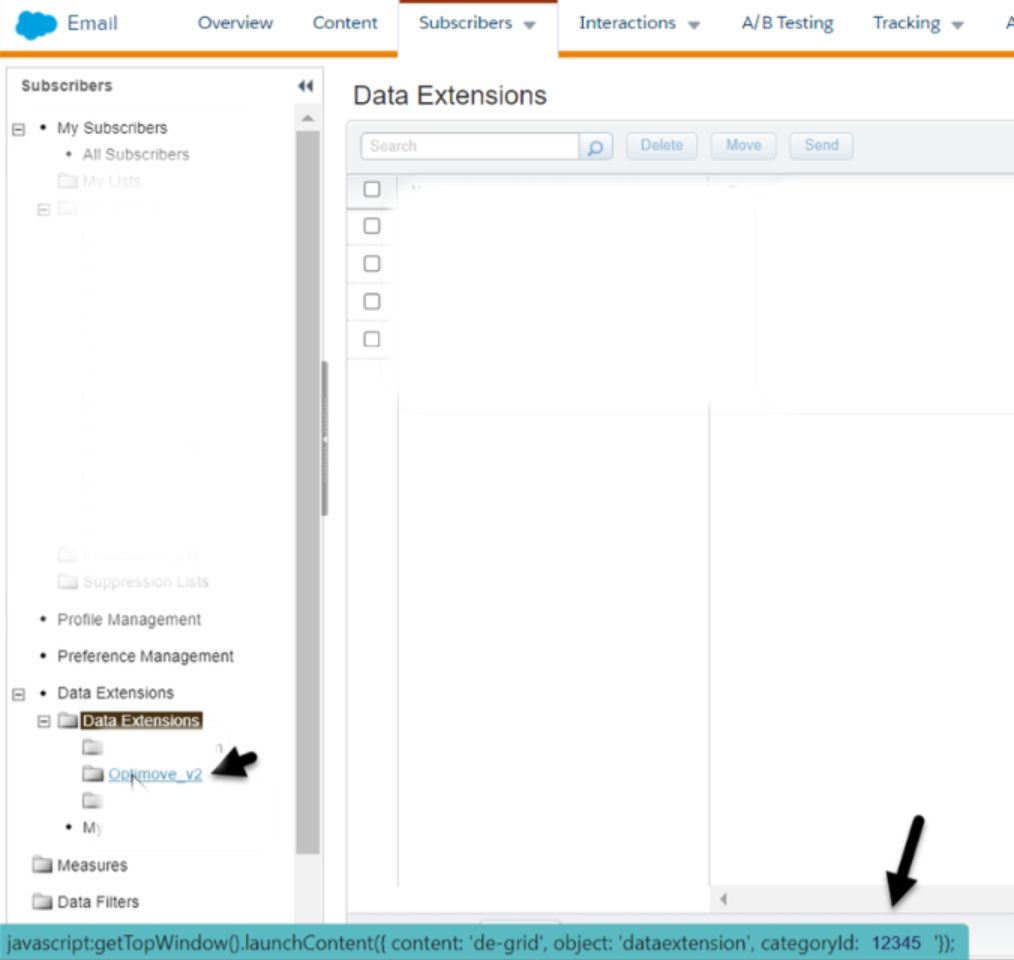

Get the Data Extension folder ID. Click the folder. The categoryId shows at the bottom of the screen.

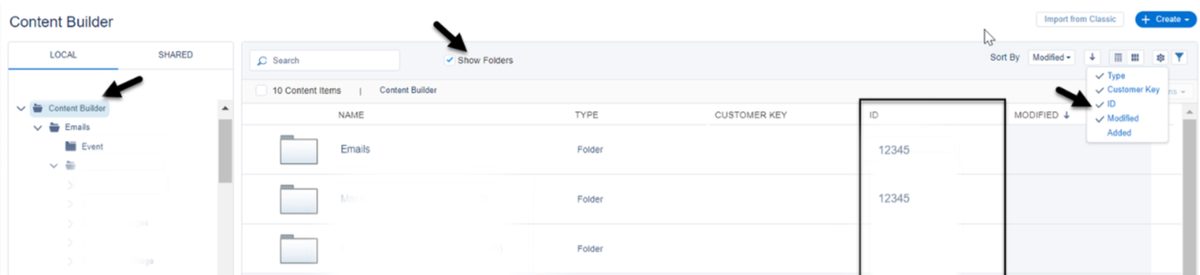

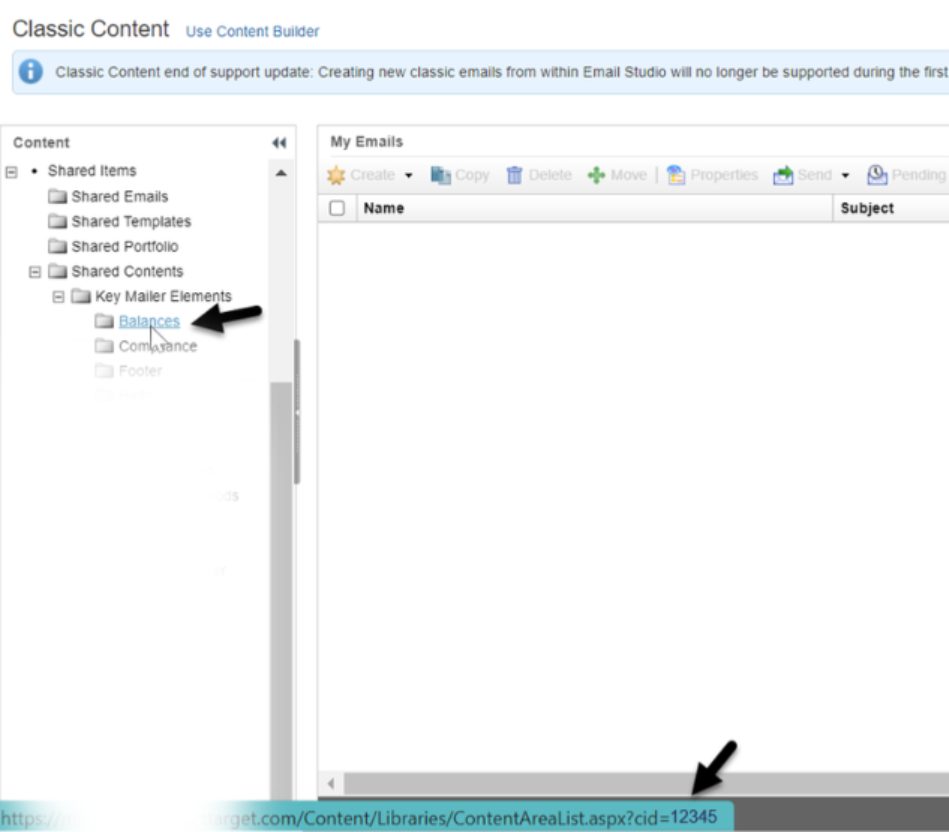

Get your Content Builder folder ID(s). In Content Builder, turn on Show Folders and the ID column. (In Classic Content, the folder ID is the cid in the page URL.)

Install the Optimove package in Salesforce Marketing Cloud

Optimove connects to Salesforce Marketing Cloud through an Installed Package with a Server-to-Server API Integration component. This package gives Optimove the credentials it needs to run your campaigns, so you must create it before the integration can be set up.

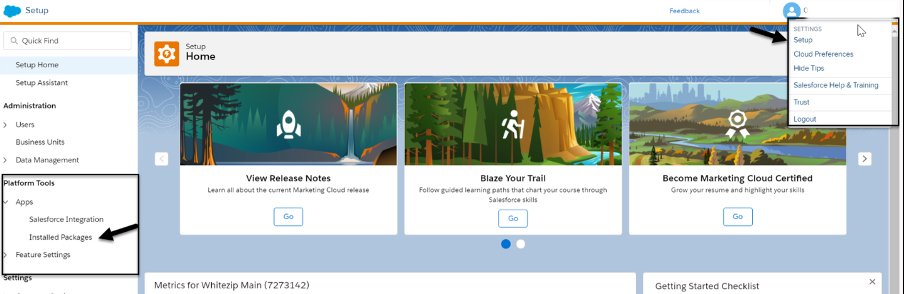

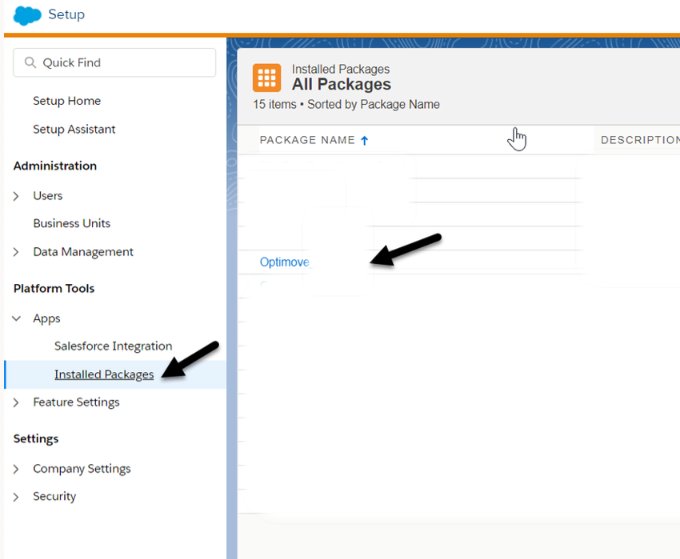

In Salesforce Marketing Cloud, go to Setup. Under Platform Tools → Apps, select Installed Packages.

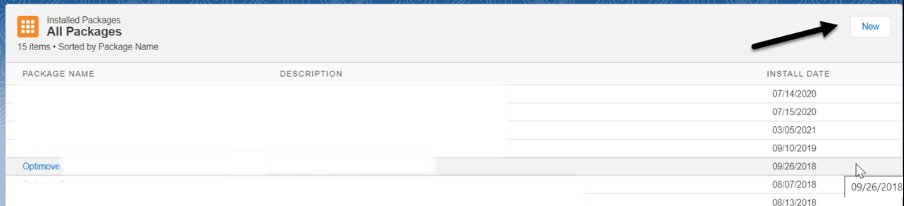

Click New to add a package.

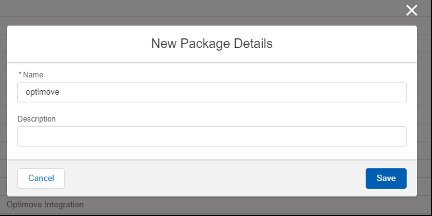

Give the package a name (for example, Optimove) and click Save.

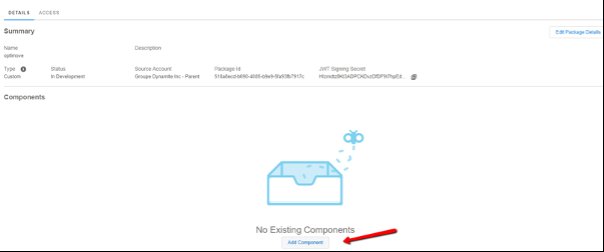

Open the package and click Add Component.

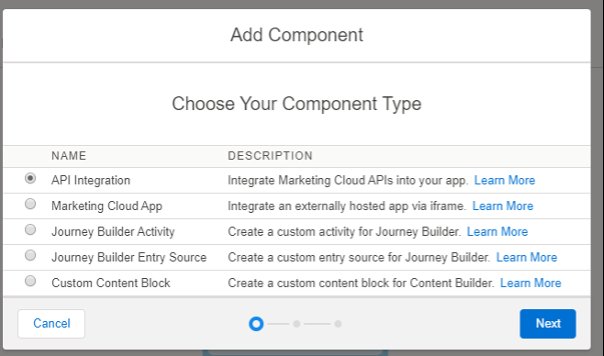

Choose API Integration, then click Next.

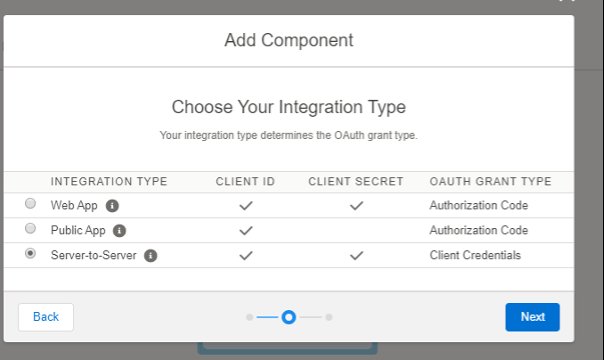

Choose Server-to-Server (OAuth grant type: Client Credentials), then click Next.

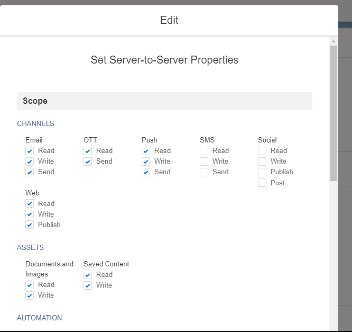

Set the Scope (the permissions the integration needs), then click Save. Select all available scopes. The integration reads and writes Data Extensions, reads your Content Builder email assets, sends emails, and reads tracking events.

Please note: A missing scope makes the setup fail. If your security policy does not allow all scopes, contact your CSM, and we will confirm the minimum set.

After you save, open the API Integration component to find its credentials. Send these values to Optimove:

clientId and clientSecret: Shown on the API Integration component.
subDomain: The first part of your Base URIs (the value before .auth.marketingcloudapis.com, .rest.marketingcloudapis.com, and .soap.marketingcloudapis.com). It is the same in all three.
accountId: Your Business Unit ID (MID).

Please note: Copy the Client Secret when you create the component. If you can no longer see it later, create a new API Integration component and send us the new values. If you later change or delete the package, or create a new Client Secret, Optimove loses access to your account. Send us the new credentials, and we will update the channel.

Submit your integration request

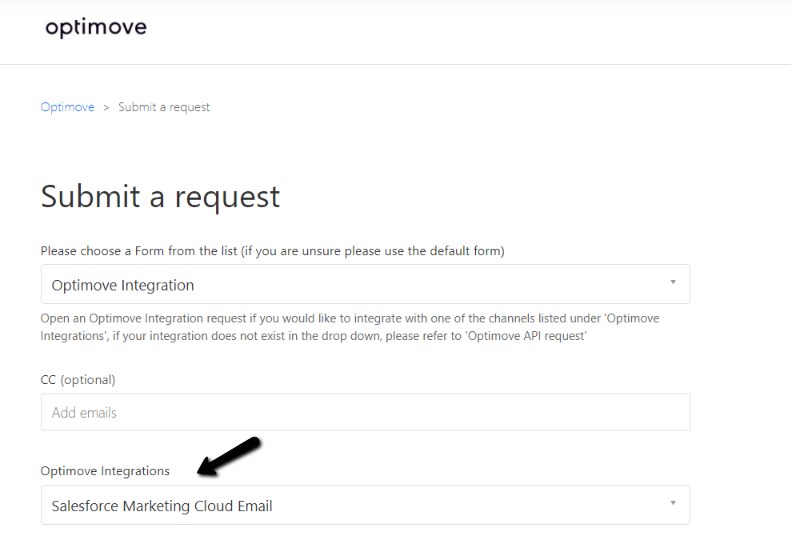

In the Optimove Customer Portal, submit the "Salesforce Marketing Cloud Email" request form with the details you gathered in Steps 1 and 2.

Optimove configures the channel

We set up the channel on your instance and load your templates. This usually takes 4-5 business days.

Add your personalization attributes (optional)

Customers are matched between Optimove and Salesforce Marketing Cloud by their Customer ID. There are two ways to personalize the emails you send through this integration:

Data that already lives in Salesforce Marketing Cloud: For example, subscriber attributes or your own Data Extensions. Salesforce Marketing Cloud fills these in itself, matched by Customer ID. There is nothing to set up in Optimove.
Data that lives in Optimove: Like First Name, Country, or Lifetime Value. Optimove sends these values together with the audience, as columns in the campaign Data Extension, the moment a campaign runs. You choose which attributes to send yourself in the Optimove UI.

The instructions below apply only if you want Optimove to supply the personalization values. If your personalization data lives in Salesforce Marketing Cloud, you can skip them. Once the channel is live, you can select the customer attributes you want to send yourself.

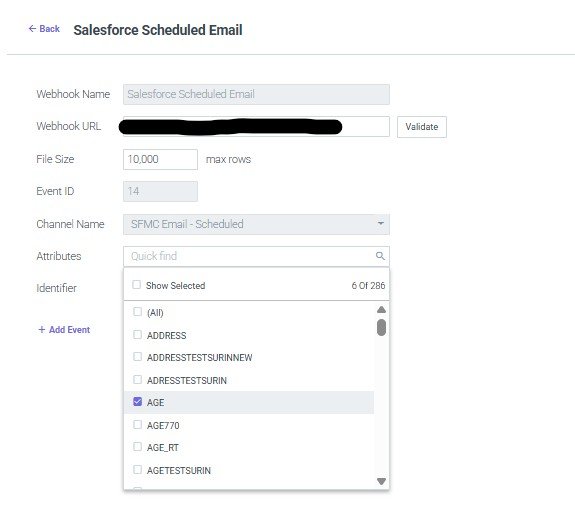

In Optimove, go to Settings → Webhook Configuration and open your SFMC email channel.
In the Attributes picker, select the customer attributes you want to send (for example, First Name, Age, LTV).
In your Salesforce Marketing Cloud email templates, use these attributes as personalization strings, for example, %%First Name%%.

Important: The personalization string in your template must match the attribute name in Optimove exactly, including spaces and capital letters. If a template uses a personalization string that is not selected in the Webhook Configuration and does not exist in Salesforce Marketing Cloud, the send fails.

Scheduled vs. real-time campaigns: The steps above cover scheduled campaigns, where you pick the attributes to send in the webhook configuration. For real-time campaigns, the personalization fields used in your campaign are sent automatically with each send. There is nothing extra to configure.

See Salesforce's documentation for guidance on personalization strings.

The "Optimove Attributes" Data Extension

You only need this if you use Optimove attributes in your templates. Optimove automatically creates and maintains a Data Extension called Optimove Attributes in your Data Extension folder, and syncs your Optimove attributes into it. This lets you see your Optimove attributes directly in Salesforce Marketing Cloud and use this Data Extension when testing new templates.

Please note: If an attribute name in your template is misspelled compared to its name in Optimove, template tests against this Data Extension will fail. If you delete an attribute in Optimove, it is not removed from Salesforce Marketing Cloud automatically. You need to remove it there manually.

Connect multiple Business Units or brands (optional)

You can connect Optimove to multiple Business Units under the same Salesforce Marketing Cloud account.

Please note: All the required information from Step 1 should be provided for each Business Unit you would like to integrate with Optimove.

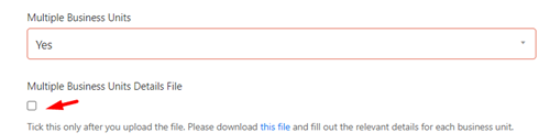

In the request form from Step 3, choose Yes under the Multiple Business Units section.
Fill out the required information for each Business Unit in the details file.
Tick the details-file upload section and attach the completed file to the request.

Multiple brands in one Business Unit

If you send each brand with its own Send Classification (with its own Sender Profile and Delivery Profile), send us one set of the three External Keys per brand. Each brand then appears in the brand selector when you set up a campaign. If one Send Classification with a dynamic Sender Profile already routes your brands, one set of keys is enough.

Brands in separate Optimove instances

If your brands run in separate Optimove instances, we connect each instance on its own. Submit one request per instance, with the details for that instance.

Test before you go live

Run a few test campaigns against a small test Target Group before you go live.

How the Integration Works

Campaign setup and execution

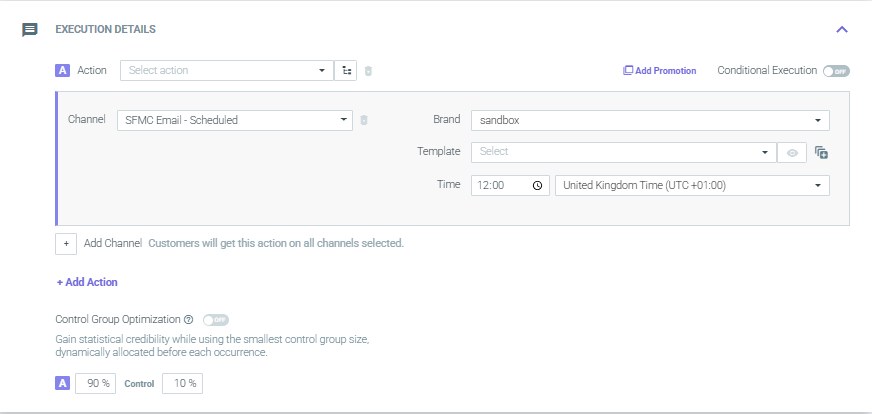

In Optimove, create a campaign and select Salesforce Marketing Cloud Email as the execution channel.
Choose the Business Unit or brand, if you have more than one.
Choose a template from the synced list.
Choose your Target Group and, optionally, promo codes.
Set the send time (scheduled) or the trigger (real-time).

Scheduled campaigns: At the scheduled time, Optimove sends the Target Group and any personalization data to Salesforce Marketing Cloud, and triggers the send in batches.
Real-time campaigns: As each customer meets the trigger, Optimove sends that customer and triggers the send individually.
You can test and preview the campaign before it sends, directly from Optimove.
Campaign status: Optimove shows the status of each campaign (for example, processing, completed), so you always know where a send stands.

Template syncing

Optimove syncs your email templates and previews on a regular basis. To add or remove templates from Optimove, add or remove them from the connected folder in Salesforce Marketing Cloud.

Please note: Once a campaign has been triggered, avoid changing its template in Salesforce Marketing Cloud. This can cause the send to fail.

Campaign metrics

Optimove retrieves delivery, open, click, and unsubscribe metrics from Salesforce Marketing Cloud and shows them in your Optimove campaign reports, alongside your other channels.

Aggregate metrics: Totals per campaign (for example, 9,500 of 10,000 opened).
Per-customer metrics: Individual customer engagement, available in Customer 360.

Campaign cancellation

Optimove sends the campaign audience to Salesforce Marketing Cloud at the moment the campaign executes: at the send time for scheduled campaigns, and as each customer meets the trigger for real-time campaigns. Until then, you can remove the campaign from your Optimove marketing plan, and nothing is sent.

Once the campaign is running in Optimove, the audience has already been sent to Salesforce Marketing Cloud. In that case, cancel the send in Salesforce Marketing Cloud manually if the send time has not passed yet.

See Salesforce's documentation for further guidance on this topic.
